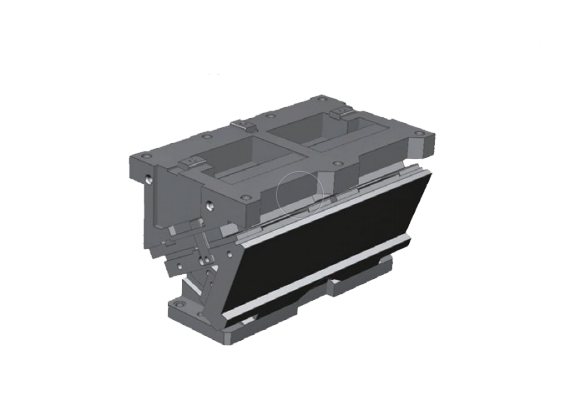

KMACG adapt to move faster and raise the load of sliding velocity.
The cam structure was improved, the nitrogen gas spring to increase the return force of cam, slide block is locked by a slot of the wear plate, increased nitrogen spring buffer for slide reduced its back force.
Applicable to the stronger than KMACA for more return force and impact KMACG slider sliding surface with holder and driver has been increased Bronze wear plates, than KMACA guide slide performance better.

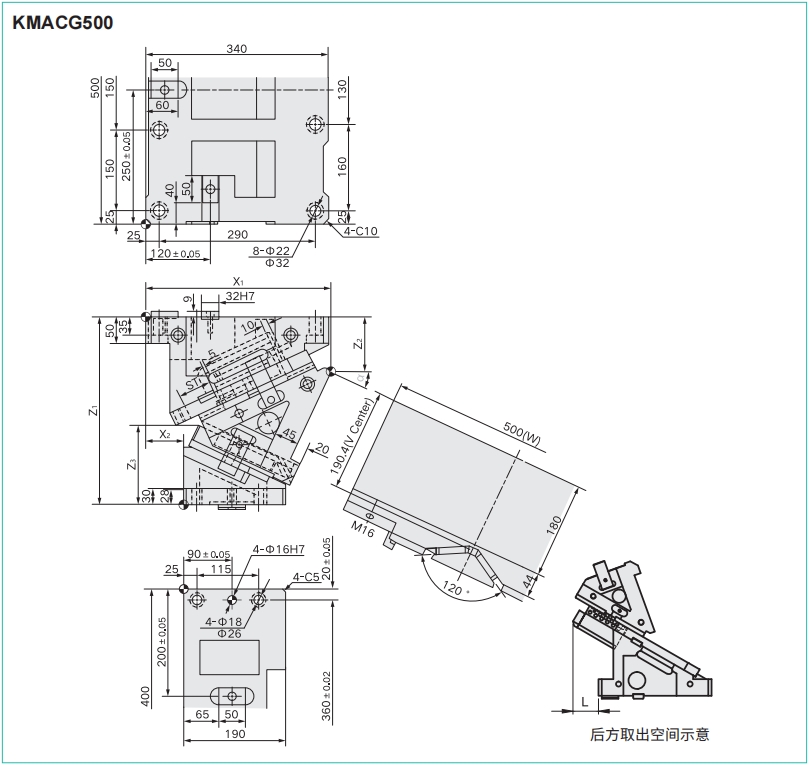

V center difference is: KMACG Slider of V center is 190.4mm,
KMACA Slider of V center is 183mm.
KMACA is adopted with JIS standard.
200. 300. 400 500 and 600 are available for the mount width.
Automatic alignment mechanism of the V-shaped quide.
Cam slider is removed from the rear. This facilitates adjustment.
lt is easy to lock at bottom or adjust without removing cam slide if you remove spring guide plate and spring.
Angles from 0° to 60° are available in increments of 5°

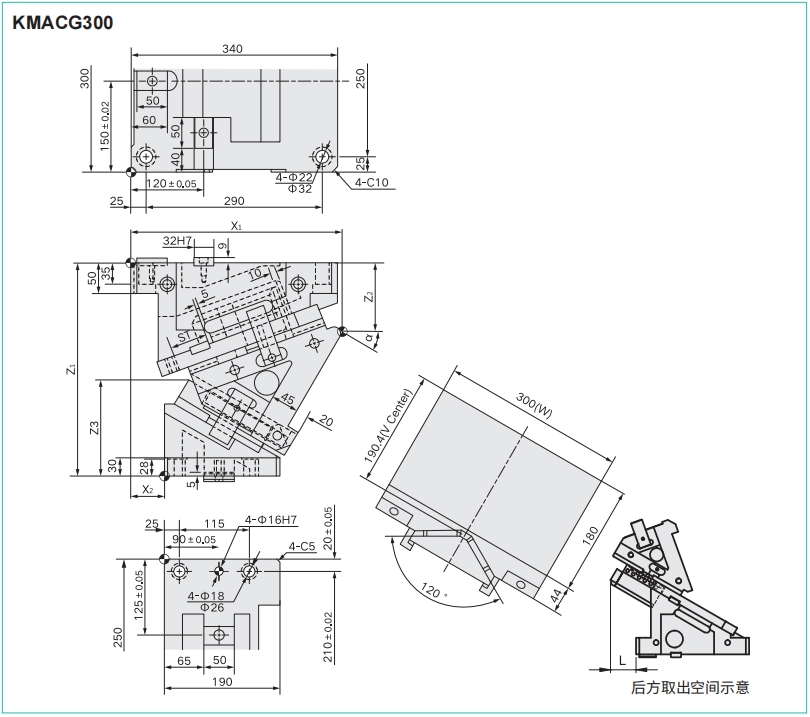

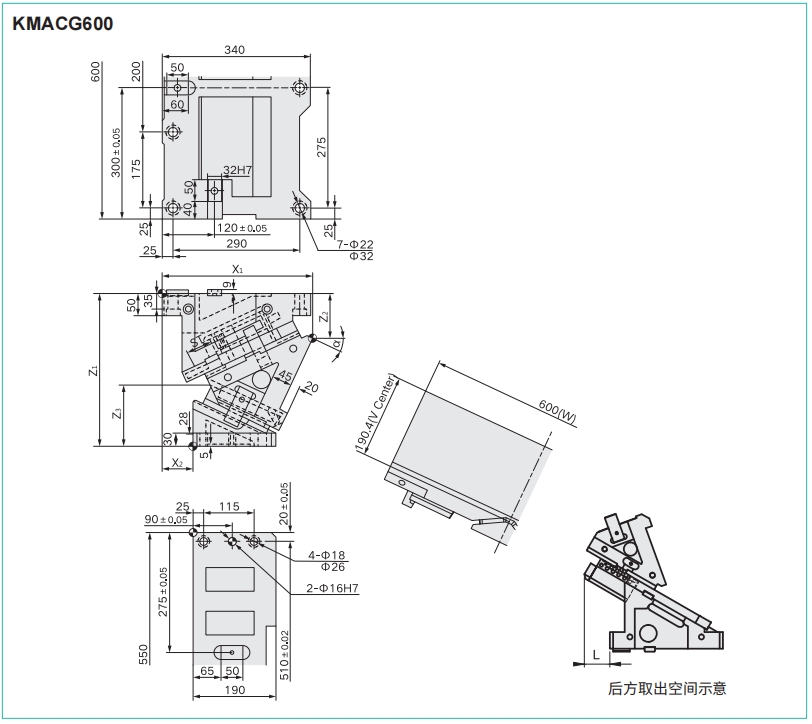

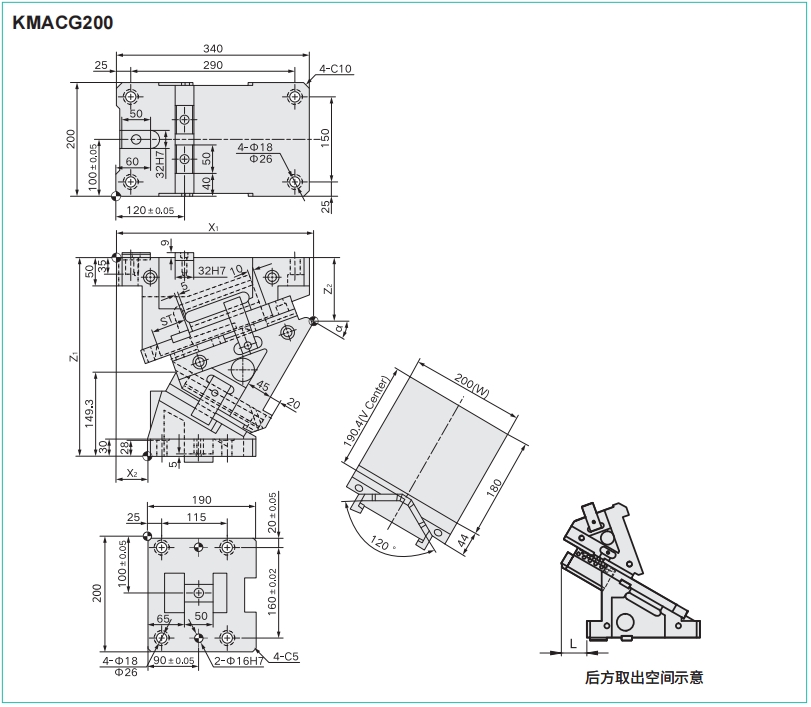

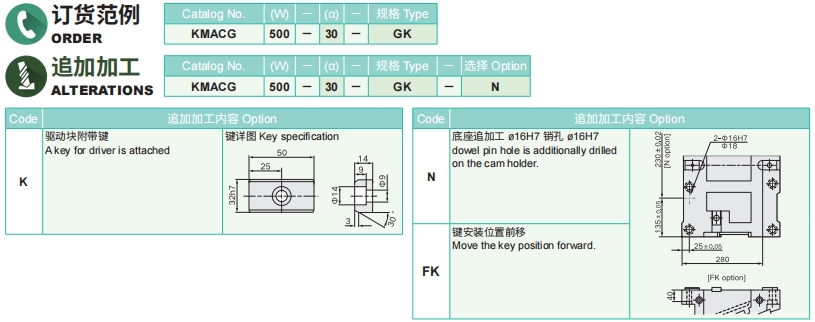

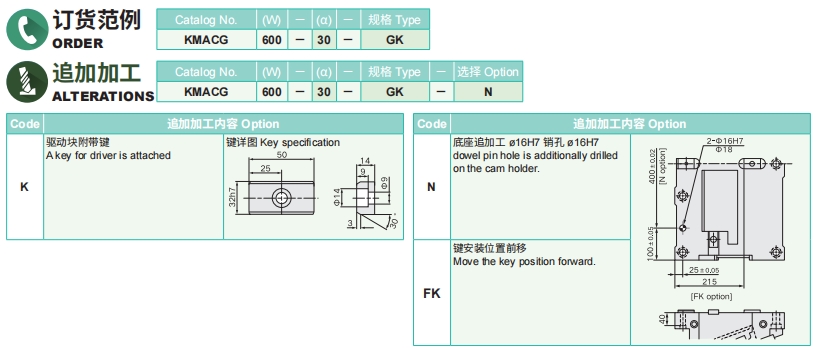

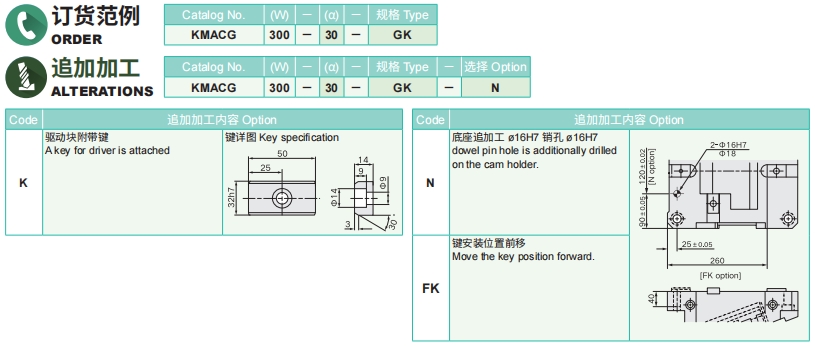

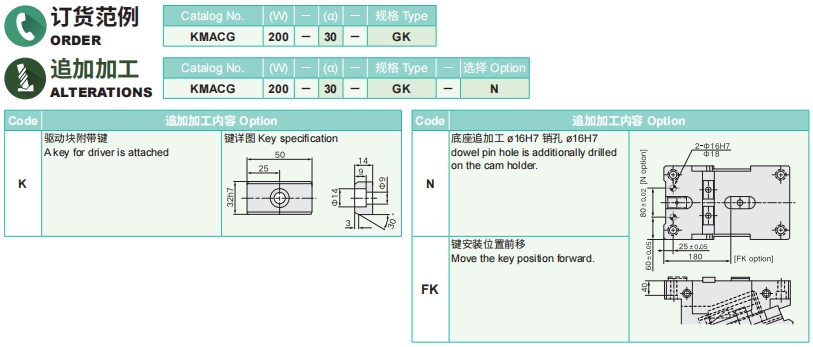

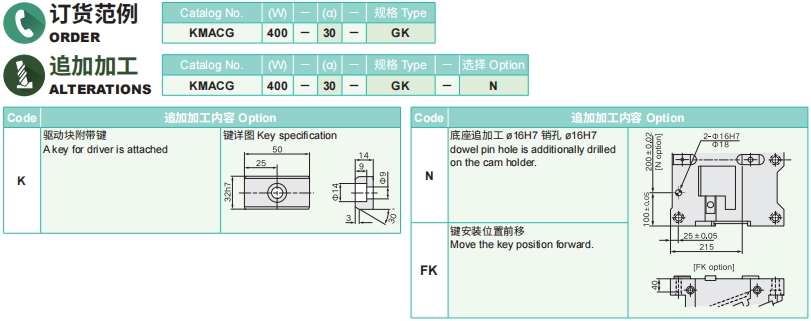

Size Chart Order Model Product Catalog
