KSACA52

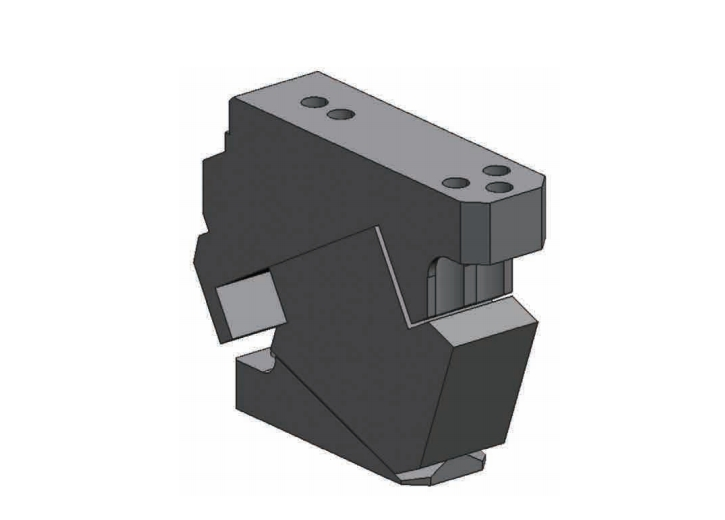

KSACA Aerial Cam Unit

I want to inquiryOnline ordering

Details

The standard working force (one million strokes) achieved 29.4 kN-3.0 ton with the mount width of 52 mm.

The allowable working force (300,000 strokes) is 58.8 KN-6.0 ton.

The spring force is 3110 N-317 kgf, which is more than three times that of similar model KSAC.

lt is effective for piercing a high tensile or a thick material.

Automatic alignment mechanism of the V-shaped guide.

Available angle is 0° to 60° at increments of 5°.

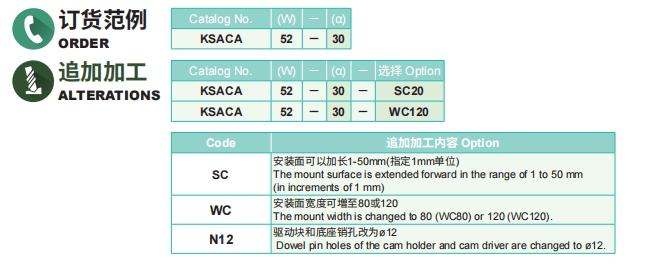

Size Chart Order Model Product Catalog
